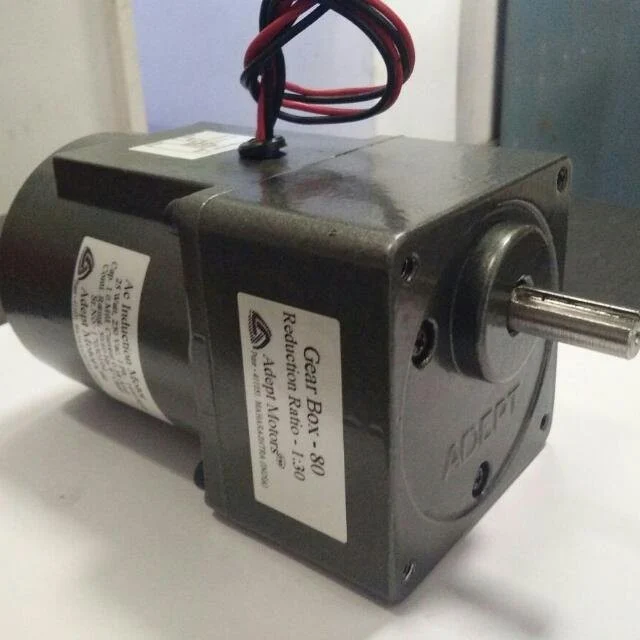

15 Watt Induction Gear Motor

Frame Size: 80 x 80 mm

Continuous rating, TE Aluminum body Rotates in clockwise or counter clockwise direction. Direction of rotation can be reversed Overruns for a few rotation after supply is cut off Speeds are 2880 / 1440 RPM and further low speeds with gearbox Terminal box or open lead wires for connection

We are offering 25 Watt Induction Gear Motor

Minimum Order Quantity 1 Piece
Phase Single Phase, Three Phase
Power 25 watt
Brand ADEPT
Speed 1440 / 2880 Rpm
Voltage 1440 / 2880 Rpm
Enquiry Now Save

Specification

Model Output Power Frequency Supply Voltage Current Starting Torque Kg-cm Rated Torque Kg-cm Rated Speed RPM Capacitor IT
80 1W 4G 25 25 60 Single phase 110 V 0.4 1.2 1.6 1450 2.5
80 IX 4G 25 25 50 Single phase 230 V 0.24 1.5 1.9 1250 1.5
80 IY 4G 25 25 60 Three phase 230 V 0.2 1.6 1.6 1450
80 IY 4G 25 25 50 Three phase 230 V 0.2 1.6 1.9 1250
80 IY 4G 25 25 60 Three phase 145 V 0.12 1.6 1.9 1250

Additional Information

  • Port of Dispatch: COURIER
  • Production Capacity: 1000
Similar items
Reversible Motor Rs.2200
180 watt induction motor Rs.5800
90 Watt Induction Gear Motor Rs.3300
Brake Rs 3000

Gear motor Torque Table:

The maximum permissible torque is 80. kg.cm

50 HZ | Unit: kg.cm

RPM 500 416 300 250 200 166 120 100 83 60 50 41 30 25 20 16 15 13 10 8.3
Gear Ratio 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180
Output Torque 5 6 8 10 12 15 21 25 30 37 45 54 68 80 80 80 80 80 80 80

60 HZ | Unit: kg.cm

RPM 600 500 360 300 240 200 144 120 100 72 60 50 36 30 24 20 18 15 12 10
Gear Ratio 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180
Output Torque 4.1 5 6.9 8.3 10 12 17 21 25 31 37 45 56 67 80 80 80 80 80 80
